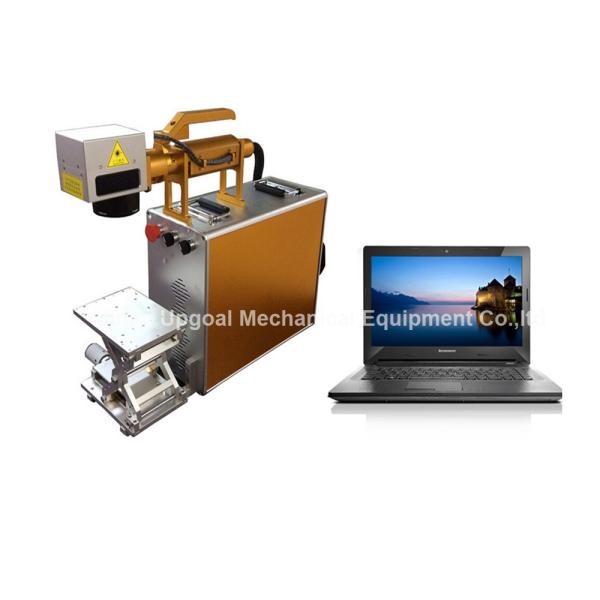

Handheld Type Metal Fiber Laser Marking Machine
Electronic and communications products, integrated circuit chip,
computer parts and electrical appliance,all kinds of precision
component, hardware tool, instrument and meter, aerospace and
astronautics, jewelry, horologe, gift, office supply, trademark
signs, sanitary ware, kitchen ware, plastic product, metal
ornament, fastener, eyeglasses frame, , sanitary ware fittings,
tableware, food, beverage and alcohol & tobacco,etc all kinds
of area graph and characters’s, marking, mass production, marking
clear and beautiful, never disappear.
1.Laser marking head is detachable type, can be handheld marking, suitable for any kinds of angle marking.
2. Detachable design & integrated system let user convenient using, can disassemble laser head and handheld
marking, good solutions for all kinds of industrial application.
3.Whole fiber structure of laser equipment, ensuring the laser high stability, no need any optical element
to do collimation adjusting.
4. Indoor and fields all can use, and easy to carry.
5 Adopting fiber laser to output laser, high electro-optic conversation rate, compact size, good quality
velocity of light. The life time of fiber laser is more than
100,000 hours, if each year working 365 days, each day working 24
hours, then the life time is more than 10 years, are the real
maintenance free, saving the later period maintenance cost.
6. Fiber laser marking machine has good facula mode, more thin single line, suitable for hyperfine processing, high
system integration, less malfunction, are the real suitable for
industrial processing area.
7. Marked graph and characters is permanent , will not regression due to friction.
8. No consumable, low power consumption, whole air cooling, no need water cooling, total machine power
less than 500W.
9. Not influenced by severe environment and bag weather, can continue working with accumulator when power failure.
10.Can for bar code, graph, characters, OR code, ect marking, supporting PLT, DXF, BMP such format, can use SHC, TTF word stock; System can auto encoding, auto marking serial number, batch number, and date, ect.
|Maximum output laser power||10W, Raycus|
|Wave length of laser||1064nm|
|Laser sources||Fiber module|
|Laser Head||High speed scanning head|
|The minimum focus facula diameter||20μm|
|Control system||Original Ez cad controller with USB port|
|Marking depth||0.01-5mm( depends on different materials)|
|Marking line width||0.01-0.1mm|
|Laser repetition frequency||20kHz~80kHz|
|Cooling method||Force-air Cooling|
|Power supply||AC 220V ±10%50/60Hz, single phase|
|Support format||PLT, BMP, DXF, JPG, TIF, AI etc|
|Process Material||All kinds of metal and part of Non-metal Materials|

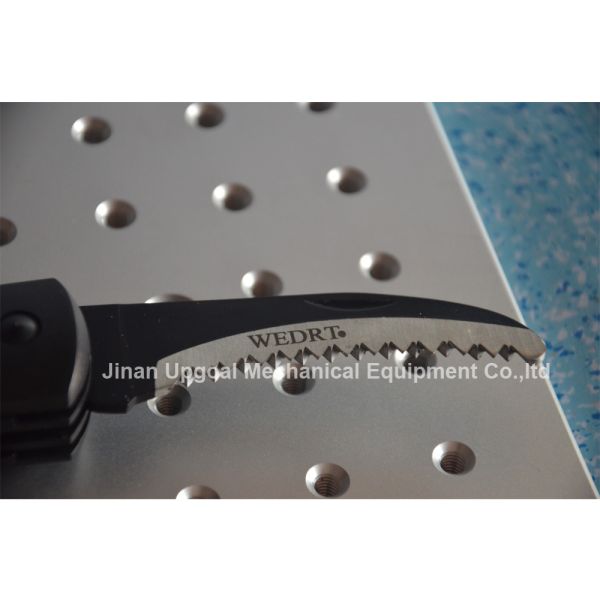

Reference Sample Photos
Reference working videos
For more information, just feel free to contact us!
