Gantry Plasma Gutting Machine Flame Cutting Machine

Gantry Plasma Gutting Machine Flame Cutting Machine

Brand Name : UPGOAL
Model Number : UG-4250P
Certification : CE
Place of Origin : Jinan City, Shandong Province, China
MOQ : 1 set
Price : USD 8010-USD 9100 FOB QINGDAO
Payment Terms : T/T, L/C, Western Union, MoneyGram, D/A, D/P
Supply Ability : 150 sets/month
Delivery Time : Within 10 working days
Packaging Details : One plywood case
Track gauge(mm) : 5000mm
Working width (mm) : 4200mm
Control system : FangLing (Cutting and drilling,double function,Shanghai) USB interface Offline control system Beak point memory function during the drilling work
Flame torch : Special cnc flame torch
Plasma power supply : HUAYUAN, China or Hypertherm, USA
Torch lifting distance(mm) : 200
Traveling speed(mm/min) : 0-10000
Cutting speed(mm/min) : 0-6000
Flame cutting thickness(mm) : thickness(mm) 5-300
Plasma cutting thickness (mm) : According to plasma power supply
Contact Now

Gantry Plasma Gutting Machine Flame Cutting Machine


Application

Suitable for nonferrous metal sheet, stainless steel plate, carbon plate, aluminum plate, galvanized plate, white steel plate, titanium plate, etc materials automatic cutting.


Application: Metal processing, machine manufacturing, auto spare parts, ventilate environment protection, steel structure shipbuilding electrical product’s shell processing, advertisements and signs, decoration, iron art garden, auto making, ship’s electrical parts& plates cutting.

Features

Gantry -cabinet crossbeam, good bearing capacity, suitable for wide span cutting. High efficiency dual type drive, impacted structure, whole tempering, fully eliminated welded stress, stable and reliable performance.


Equipped with flame cutting, suitable for all kinds of thickness carbon steel, stainless steel and nonferrous metal plate’s precision cutting, improve the plate utilization, saving time and material. Can more 5-300mm carbon steel high-quality cutting.


Different cutting system can meet with all kinds of flame, dusting and plasma processing purpose.

Special customized system, which has gas control box and air circuit distribution system, with automatic firing device, flashback arrestor, safe and stable.


CNC Control system


1. LCD, English display. Has the notes of each operation button on the bottom of displayer in time, so just needs short training, then the buyer can do independent operation, more convenient and easy to use.

2. Powerful anti-interference ability, moving stable and convenient.

3. With cutting compensation function, setting the required workpiece size in computer, nesting and output, can adjust the slotting size in the control system according to needs, easy and efficient operation.

4. Memory function after power failure and break point, no matter power failure or arc breaking during cutting, all can continue go forwarder or back-off following the cutting track.


THC( Torch Height Controller)


1. With high sensitivity THC, auto adjusting the best cutting distance, ensuring the workpiece accurately cutting.
2. The torch has auto torch height controller, during cutting, the torch always keeps the same distance with the plate, extend the nozzle’s life time, and get the high quality cutting effect.

3. Good anti jamming capability, stable performance


Z-axis


1. Z-axis is lead ball screw transmission type, high speed, convenient maintenance,suitable for all kinds thickness of plates.

2. Can auto adjust the cutting distance for uneven plate, ensuring the same distance between the torch with plate, ensuring the cutting quality.

3. Special torch height controller can prevent the torch crash the plates effectively, protect the torch and long time using.

4. With anti-collision device, during the cutting, if torch crash accidentally, the machine will stop immediately, avoiding breaking the machine and thin plates is whiled away due to the cocking.


Motor & Drive


1. Adopting China famous brand stepper motor and driver, stable performance, high response speed, good anti jamming capability.

2. All the machine’s signal wire is high flexible shielded wire, heat resistant, low temperature resistant, bend resistant.

3. Control signal uses 24V voltage, with famous brand switch power supply.


Nesting Software


1. Austria FastCAM automatic programming and nesting software

2. Auto programming, parts generated and nesting softare professionally drawing and cutting control

With the post processor for graphic transformation and nesting.

3. Realizing the edge-shared nested during cutting, saving time and materials.


Plasma Power Supply


HUAYUAN, China, 200A, or Hypertherm, USA

Technical Parameters

Track gauge(mm)30004000500060007000
Working width (mm)22003200420052006200
Control systemSTARFIRE or Fang Ling
Flame torchSpecial cnc flame torch
Plasma power supplyHUAYUAN, China or Hypertherm, USA
Torch lifting distance(mm)200
Traveling speed(mm/min)0-10000
Cutting speed(mm/min)0-6000
Flame cutting thickness(mm)5-300
Plasma cutting thickness (mm)According to plasma power supply
Fuel gas typeAcetylene or natural gas, propane
FoundationH type steel( standard) or cement foundation

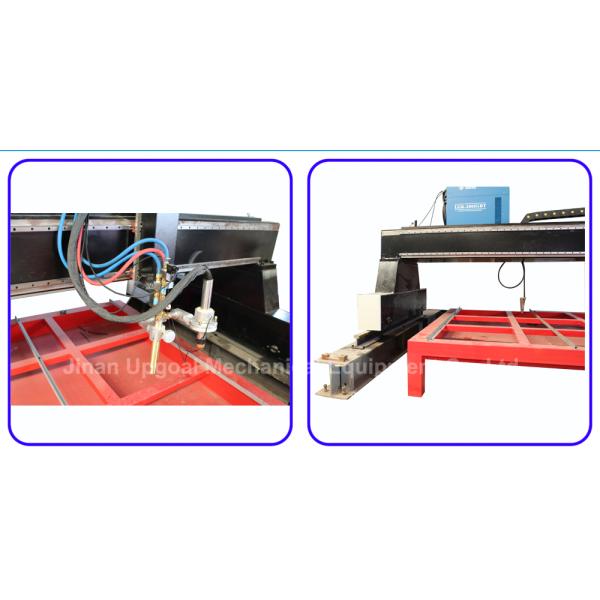

Reference Parts Photos



Reference Samples

Reference working videos

https://www.youtube.com/watch?v=CH4JNBWQ-Fs&list=PLZ2SG5kTfvfP-BAdTY2xfM_SnbaMtOpSQ&index=3


For more information, just feel free to contact us!
