Car Block Set Co2 Laser Cutting Machine with Auto Feeding System/Double Heads
Application
A variety of fabrics can be cut into any graphics precisely which can be made into Sofas, tents, umbrellas, clothing, leather, soft cloth (cloth, leather, plush), car interior (seat covers, floor mats, cushion)
Features
Auto material-feeding platform
Caterpillar band type auto material-feeding platform with new type flat flex belts with strong absorption for wool fabric, realizing continous feeding and cutting with with less labor and material.
Auot edge cutting without rough edge, burr.
With Oneline control system, Work can be loaded from the Cloud.
Fabric Presser
Fabric is adsorbed onto the working table ensured material is fed steadily without creases curled edges
Laser Head
Newly design, More in according with mechanical engineering. Safe and Durable. Simple Operation with high engraving/cutting speed and high laser power convert ratio.
Double laser head, improving the working efficiency.
Working Table
SUS304 stainless steel Strips: With oxidation treatment and low reflection ratio Ensured cutting quality
Beam Path System
Adopting imported focus lens with high lusciousness and mirror with high reflective ensure stable power transference.
Motion System
Imported High precision,low friction force and stand wear and tear linear square guide rails and blocks with 3M belt ensured stable transmission, lower noise
Operation System
Advanced USB port Trocen AWC708WC special auto feeding control system with large inner memory device and Fast rectilinear cutting and Optimized shortest path function, Greatly improved the working efficiency .
With full-process automatic laser power attenuation compensation , ensuring the performance consistency of engraving/cutting. The High speed motion control program with pre-buffering function enhances productivity more.
Completely compatible with various CAD&CAM softwares such as AuotCAD, CorelDAW, supporting the desgins directly exporting. With advanced Color management and defining the working turns with different colors , All or a part work can done in one time.
Rationalized placement of the electronic parts Optimized heat dissipation effect.
Cooling system
Industrial chiller CW-5200
Technical parameters
| Effective working area | 1600*1000mm |
| Laser Type | Co2 sealed-off laser tube |
| Laser head number | Double |
| Laser tube power | S4 series, Reci, Beijing (Rated power: 100W, max. Power: 130W) 2 pcs |
| Working table | SUS304 stainless steel strip auto feeding working table |
| Driver mode | 3 phases stepper motor and Driver, Yako brand |
| Guide rail | Linear square guide rail ( Hiwin,Taiwan) |
| Transmission | Belt transmission |
| Control panel | English |
| Laser output control | 1-100% software setting |
| Engraving speed | 0-60000mm/min |
| Cutting speed | 0-10000mm/min |
| Control system | Trocen AWC708C |
| Control software | LaserCAD |
| Design software when delivery | CorelDraw |
| Control panel | DSP offline |
| Resolution accuracy | < 0.01mm |
| Location precision | < 0.01mm |
| Highest scanning accuracy | 2500DPI |
| Type of cooling | Industrial chiller CW-5200 |
| Water protection system | Yes |
| Blow-off system | Air pump for the laser head Air blower for the machine |
| Biggest scanning accuracy | 2500DPI |
| Working temperature | 0-45 °C |
| Operating humidity | 5-95% (without condensed water) |
| Voltage | AC 220V 50/60Hz, single phase |
| Supporting picture format | PLT,DST,DXF,BMP, DWG,AI,LAS,etc |
| Certificate | CE/FDA |
Reference Parts Photos

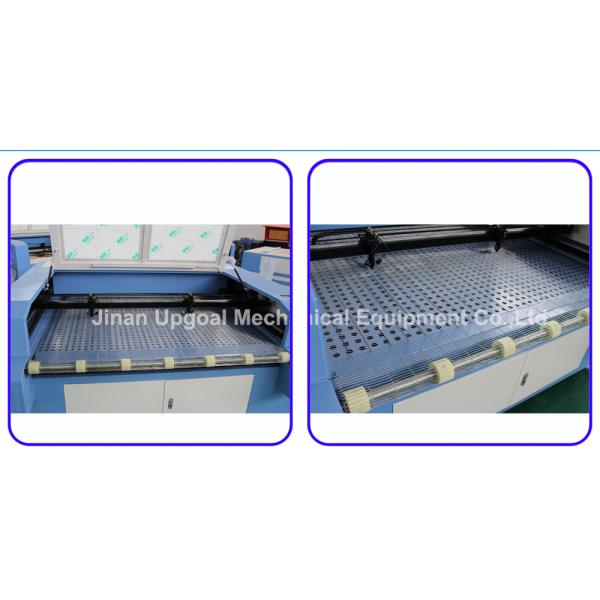

Auto feeding working table

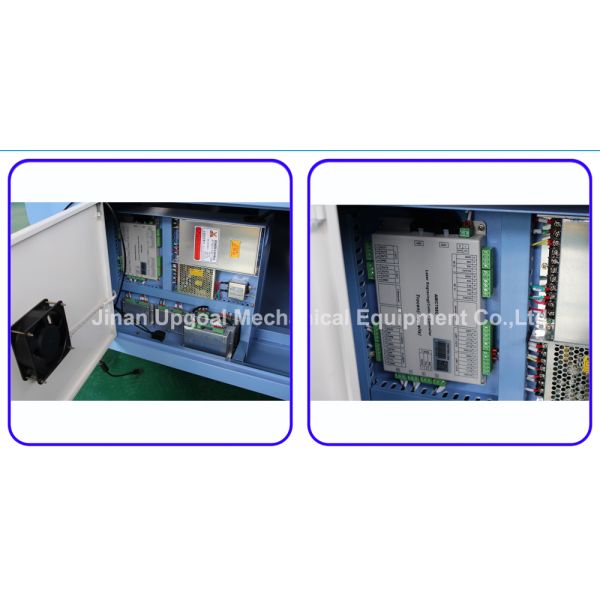

Control cabinet
